Platen Insulation

Engineered For Maximum Mold/Platen Efficiency

Haysite’s family of mold and platen insulation products are specially engineered fiberglass reinforced thermoset polyester composites which offer superior energy efficiency, temperature control, and durability for high temperature mold and platen thermal applications.

When compared to other available insulating materials, Haysites’ Thermalate® and Heatmeiser® provide proven, cost effective products for the plastic or rubber molder.

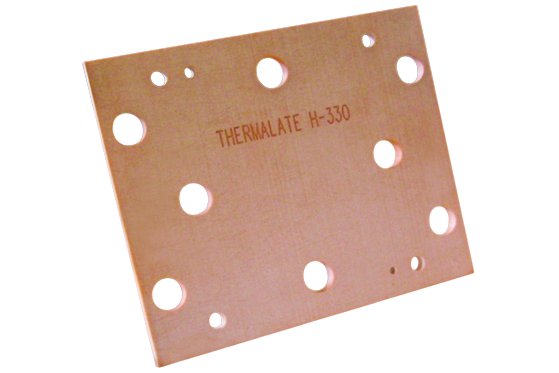

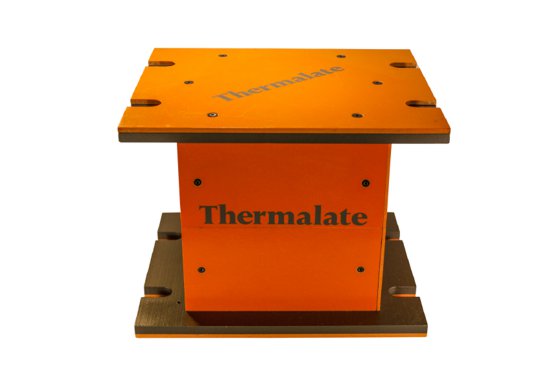

THERMALATE® H330

Haysite Thermalate® composites offer a number of specific advantages over other insulation materials:

  • Asbestos Free
  • Cost Effective: Increased efficiency allows for short payback.
  • Low Thermal Conductivity/Energy
  • Efficient: Saves and allows more precise temperature control
  • High Heat Resistance: Designed to operate at temperatures up to 550°
  • High Compressive Strength: Will not take a compressive “set”, causing mold alignment problems, when subject to extremely high molding pressures.
  • Tough and Durable: Does not crack or break easily during mold setup or tear down. More durable than mica or asbestos materials.
  • Resists Oils and Fluids: Other more absorbent insulators, such as concrete asbestos, can deteriorate or alter their thermal conductivity.
  • No Maintenance.

HEATMEISER® H340

Heatmeiser® exemplifies Haysite’s engineering and R&D capabilities. A true breakthrough material in thermal insulation sheet, Heatmeiser® is a specially engineered composite offering superior energy efficiency, temperature control and durability for high temperature mold jacket and platen thermal insulation applications. Heatmeiser® thermal conductivity results separate this material from all other glass reinforced products.

Authorized Distributors U.S.A.: Thermolate® H330 & Heatmeister® H340

products

PLATEN INSULATION - high temperature mold jacket, platen thermal insulation



Insulating Sheet
Information



  • Standard Stocked Sheet Sizes: 36”x72” and 48”x 96”.
  • 48”x60” is available upon request: (Minimum order quantity will apply)
  • Thickness available: 1/4” to 2”
  • Thickness Specification: +/-.004
  • Flatness Specification:
  • All Platen Insulation is sanded on both sides
  • Special cut sizes and unsanded material is also available upon special request
